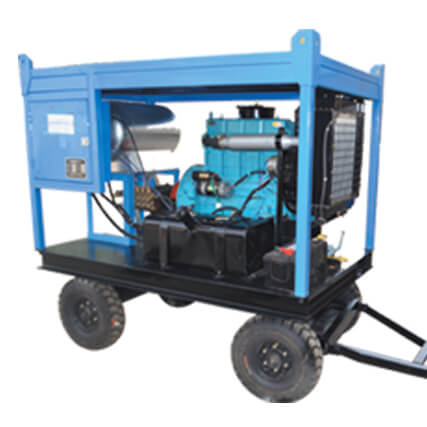

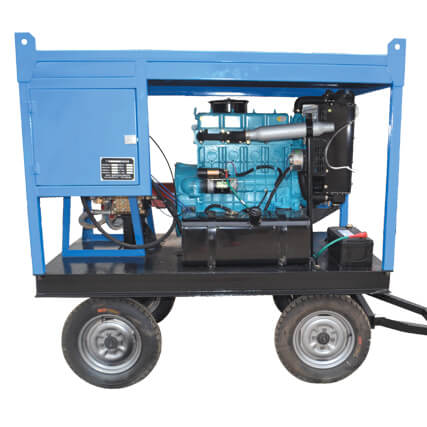

500bar diesel water sand blasting machine

Model: GY-23/500
Rate Pressure: 500bar
Water flow: 23 L/min
Diesel engine power: 30kw; 4-cylinder

We're here to help: Easy ways to get the answers you need.

chat now send Email share with:

TECHNICAL PARAMETER

Name Details
Model GY-23/500
Speed 1480 rpm
High pressure pump Italy COMET Brand;
Rate Pressure 500 bar / 7200 psi
Water flow 23 L/min
Plunger dia.
 18mm
Electric power 22kw, 3Phase, 380v/50Hz; IP55
Diesel engine 30kw, 4-cylinder

application

Wet sand blasting machine is used for shipyard rust remove, paint remove, industrial cleaning, iron rust removal, descaling furnace removal, concrete surface roughing, etc.

Maine Machine include

Name Details

Pressure regulating valve

0-500bar can be adjust



High pressure pump

500bar; 23 L/min; Italy COMET Brand



Pressure gauge

Data 0-500bar



Diesel engine

30kw, 4-cylinder



Electric cabinet

Match the electric motor



Coupling

Connect the electric motor with the pump



Water tank

Volume 200L



Ball Valve

Control the nozzle working



Y-type Filter

Water inlet filter



Movable chassis

With 4 small wheels, easy to be moved

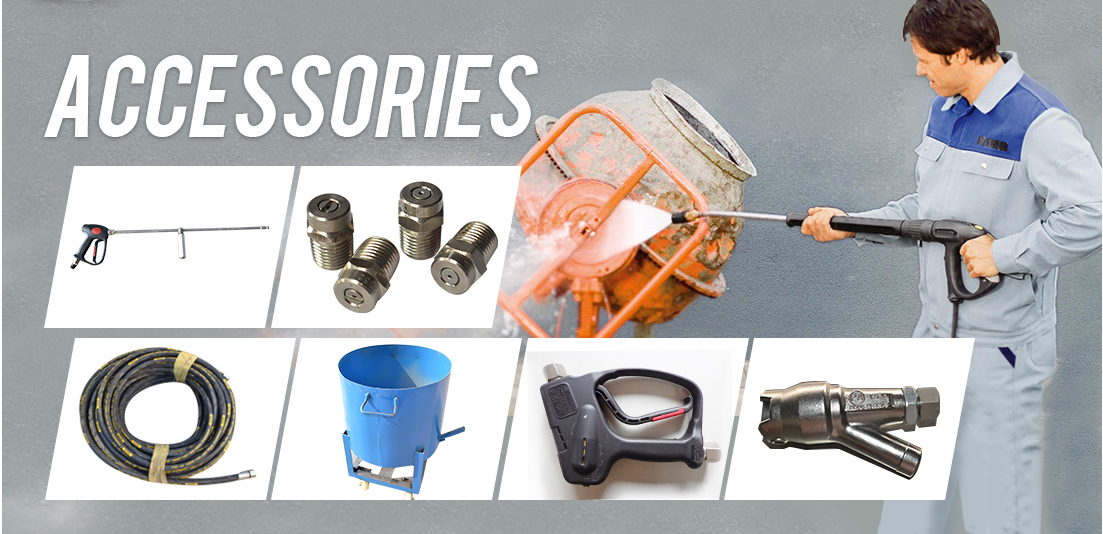

Accessories

Name Details
High pressure hose DN10; Bear Pressure 70Mpa
Water spray gun Italy PA Brand, 560Bar Pressure
Fan-shaped nozzle Connect with the water spray gun
Cylinder-shaped nozzle Connect with the water spray gun
Wet sand spray nozzle for rust paint remove
Sand inlet hose
Sand Tank Volume 150L
Spare Part
