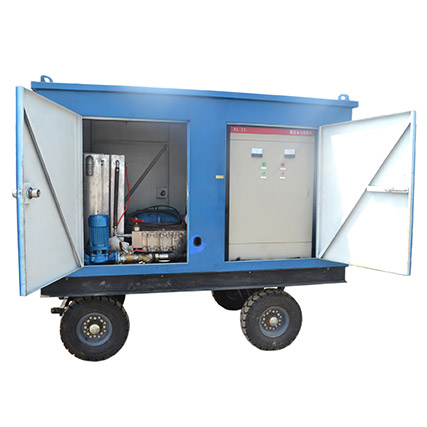

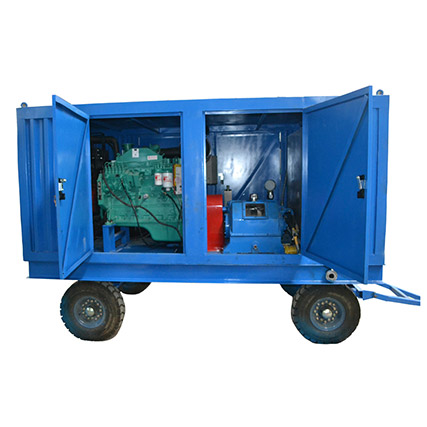

GY-50/1500 160kw High Pressure Cleaner Machine

Model: GY-50/1500
Rate Pressure: 1500bar
Water flow: 50 L/min
Electric power: 160kw, 3Phase, 380v/50Hz; IP55

We're here to help: Easy ways to get the answers you need.

chat now send Email share with:

TECHNICAL PARAMETER

Name Details
Model GY-50/1600
Inpurt speed 1480 rpm
High pressure pump Made In China
Pump speed 366 rpm
Stock 120 mm
Rate Pressure 1500 bar / 40000 psi
Water flow 50 L/min
Plunger dia.
22mm
Electric power 160kw, 3Phase, 380v/50Hz; IP55

application

Our cleaning machine can be applied in both industrial and family cleaning, such as shipyard, power plant, starch factory, etc. Which are used for pipe cleaning, pressure test, shipyard rust remove, paint remove, building surface cleaning, concrete cutting, etc.

Maine Machine include

Name Details Quantity
High pressure pump 1500bar; 50L/min; 1 set
Pressure regulating valve 0-1500bar can be adjust 1 pc
Safety valve



1 pc
Pressure gauge Data 0-1500bar 1 pc
Electric power 160kw, 3Phase, 380v/50Hz; IP55 1 set
Electric cabinet Match the electric motor 1 set
Coupling Connect the electric motor with the pump 1 set
Water tank Volume 400L 1 set
Ball Valve Control the nozzle working 1 set
Y-type Filter Water inlet filter 1 set
Booster pump For Precision filter
1 set
Precision filter



1 set
Movable chassis With 4 small wheels, easy to be moved 1 set

Accessories

Name Details
High pressure hose Bear Pressure 120Mpa
Water spray gun Stainless steel material
Fan-shaped nozzle Connect with the water spray gun
Cylinder-shaped nozzle Connect with the water spray gun
Flexible lance For industrial pipe cleaning
Flexible lance nozzle Multi hole, Connect the flexible lance, for small pipe cleaning
Stainless steel lance For industrial pipe cleaning
ss lance nozzle Multi hole, for industrial small pipe cleaning
Foot control valve Stainless steel material, control the lance
Spare Part
