• Electric Sewer Drain Cleaning Machine

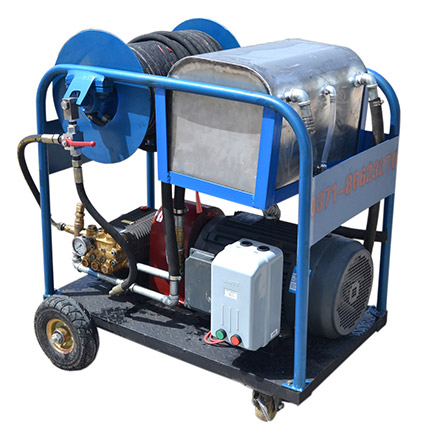

Electric Sewer Drain Cleaning Machine

Model: GY-50/150
Rate Pressure: 150bar
Water flow: 50 L/min
Electric power: 15kw, 3Phase, 380v/50Hz.

We're here to help: Easy ways to get the answers you need.

chat now send Email share with:

TECHNICAL PARAMETER

Name Details
Model GY-50/150
Speed 1480 rpm
High pressure pump Italy COMET Brand;
Rate Pressure 150 bar / 2200 psi
Water flow 50 L/min
Plunger dia.  28mm
Electric motor 15kw, 3 phase, 380v/50Hz;
Electric cabinet Match the electric motor

Characteristic

1. Pump Head: Cooper material, High pressure resistant, high tem. resistant;
2. Plunger: Ceramic material, wear-resisting, corrosion resistance.
3. High pressure pump: Three plunger reciprocating, forced lubrication;
4. Pressure Regulating valve: Alloy valve spool and Alloy valve seat;
5. Gasoline: HONDA Brand; With high quality and long working time.

application

1. Municipal pipeline cleaning;
2. Housing estate, hotel, restaurant, factory sewer pipe cleaning;
3. Ground surface cleaning, car cleaning, wall surface dirt cleaning, etc.

Maine Machine include

Name Details Quantity
High pressure pump 150bar; 50 L/min; Italy COMET Brand 1 set
Pressure regulating valve 0-180bar can be adjust 1 pc
Pressure gauge Data 0-600bar 1 pc
Electric motor 15kw, 3 phase, 380v/50Hz;  1 set
Electric cabinet Match the electric motor 1 set
Water Tank Volume 100L 1 set
Connect belt Connect the pump with engine 3 pc
Ball Valve Control the nozzle working 1 set
Y-type Filter Water inlet filter 1 set
Hose Reel To hold the high pressure hose 1 set
Movable chassis With 4 small wheels, easy to be moved 1 set

Accessories

Name Details
Name Details
High pressure hose DN13; Bear Pressure 22Mpa
Sewer cleaning nozzle DN40 Mul-ti hole cleaning nozzle
Water spray gun For surface dirt cleaning
Fan-shaped nozzle Connect with the water spray gun
